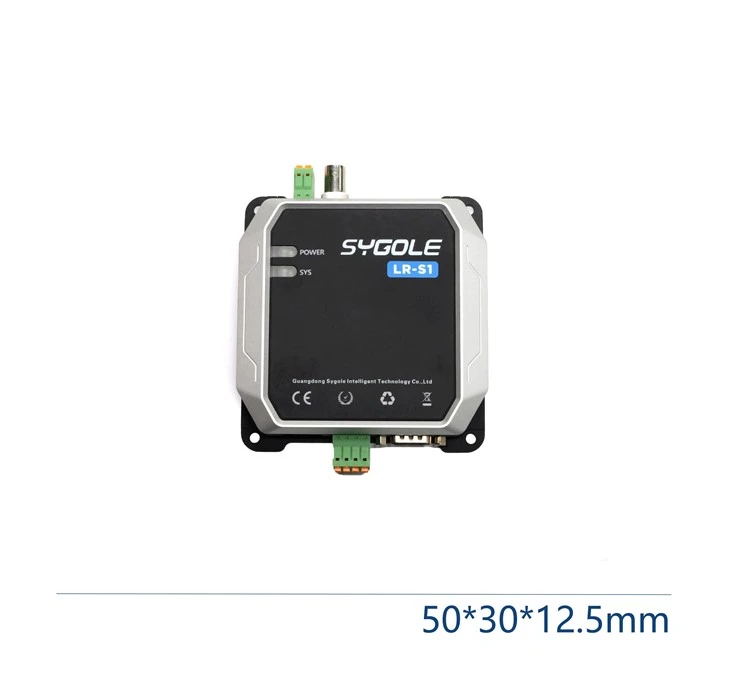

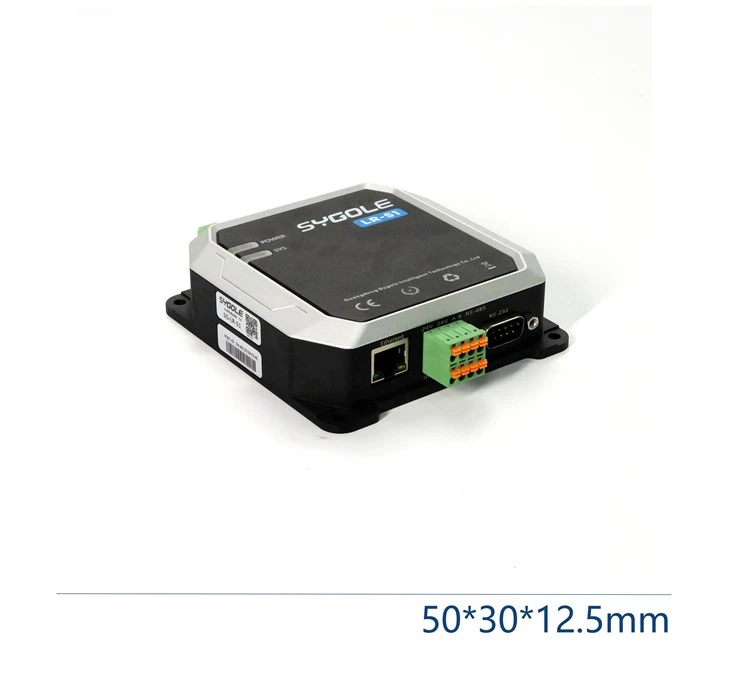

Semiconductor Manufacturing LF RFID Reader SG-LR-S1
SG-LR-S1
This is an RFID read/write device specifically designed for the semiconductor manufacturing industry, in line with the world's SEMI standards
Description
Features
- Working frequency is 134.2 kHz, in compliance with ISO11784/5 standard
- Compact design, convenient for distributed installation and deployment
- Communication function is achieved through standard DB9 male connector (RS232 interface) or RJ45 connector (ETH interface)
- Power supply and communication through plug-in terminal blocks with a spacing of 3.81mm (RS485 interface)
- IP20 protection level and excellent anti-interference design, able to adapt to harsh working conditions
- Efficient data collection capability can effectively improve the accuracy of the MES system data collection
Usage
Semiconductor Manufacturing LF RFID Reader SG-LR-S1 is specifically designed for the semiconductor manufacturing industry, which complies with the world SEMI standard. Its operating frequency is 134.2 kHz, it adopts HDX half-duplex data transmission mode, supports standard industrial semiconductor SECS protocol and Modbus RTU, Modbus TCP protocol, and can be configured through the host computer software, so that users can directly set the working mode, communication rate, and device address. The writer is compatible with the CID carrier produced by TI, has a built-in 64-level automatic tuning circuit, has excellent read and write reliability, and can be seamlessly connected to existing semiconductor production equipment.
Specification Parameters
|
Wireless Protocol |
Working Frequency |
Read Write Distance |
|
ISO-11784/5 |
134.2KHz |
0~8Cm (related to antenna, tags, and installation environment) |
|
Communication Interface |
Communication Rate |
Rated Voltage |
|
Ethernet/RS485/RS232 |
10Mbps/9600~115200bps |
DC 24V ±10% |
|
Rated Current |
Pilot Lamp |
|
|
0.5A@24VDC |
2 LED indicator lights |
|
Physical Parameters
|
Host Size |
Antenna Size |
Total Weight |
|
106*113*32mm(±0.5mm) |
50*30*12.5mm(±0.5mm)( installation board Include) |
0.2KG±5% |
|
Antenna Weight |
Fixing Type |
Host Housing Material |
|
0.08KG±5% |
Host fixing: 4 * M4 screws, antenna fixing: 4 * M3 screws |
PC+ABS |
|
Antenna Housing Material |
Host Shell Color |
Antenna Shell Color |
|
PC+ABS |
Black + Silver |
Black |
|
Connector Type |
||
|
BNC Female Head |
Application Environment
|
Working Temperature |
Storage Temperature |
Working Humidity |
|
-25℃~+55℃ |
-40℃~+80℃ |
5%~95%RH (No condensation) |
|
Protection Grade |
Certification |
Accessories |
|
IP20 |
CE, ROHS2.0 |
Connectors, etc. |
Dimension (Unit: mm)
