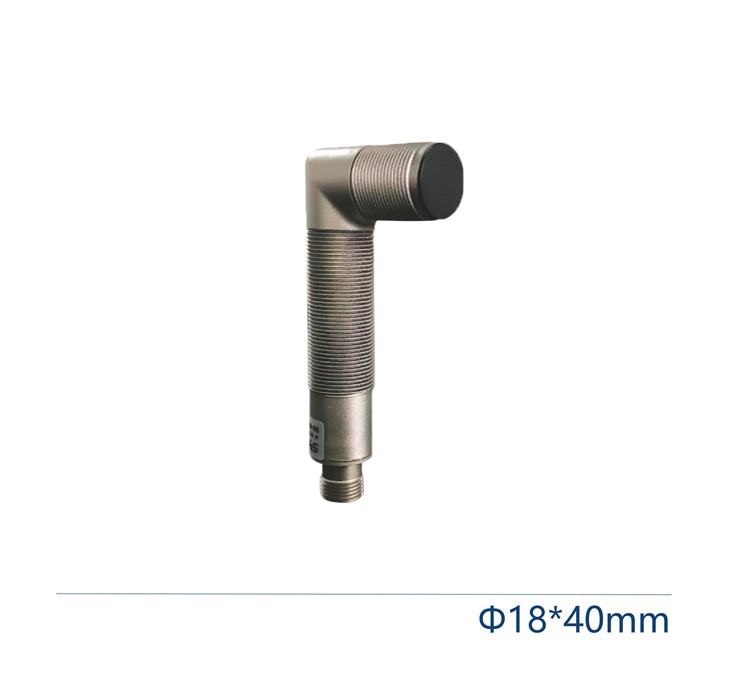

RS232/RS485 HF RFID Reader SG-HR-I10
SG-HR-I10
Integrated design, L-shaped appearance,compact structure, convenient for distributed installation and deployment
Description
Features
- Working frequency: 13.56MHz
- Communication interface: RS232/RS485
- Integrated and compact structural design results in good performance in distributed installation and deployment
- Protection degree up to IP67, and the product can work well against harsh environments, such as oil pollution (cutting fluid, etc.), dust, and humidity situations
- L-shaped appearance
- System connectivity is strengthened by a 5/8-core aviation head/threaded connector
- Strong anti-interference capability against EMC
Usage
Automobile production line, household appliance, AGV, etc.
Application Scenario
★Intelligent application for the home appliance manufacturing process
Based on RFID technology, RS232/RS485 HF RFID Reader SG-HR-I10 helps achieve the automatic, real-time identification of a single product. Through the real-time collected product information, we realize the product tracing management, mixed flow production material error prevention, defect products automatically diversion, etc

Specification Parameters
|
Model and Parameters |
SG-HR-I10-RS232 |
SG-HR-I10-RS485 |
|
|
Specification Parameters |
Wireless Protocol |
ISO-15693 |
|
|
Working Frequency |
13.56MHz |
||
|
Output Power |
23dBm |
||
|
Wireless Rate |
26.5kbit/s |
||
|
Read Write Distance |
0~30mm (related to tags) |
||
|
Communication Interface |
RS232 |
RS485 |
|
|
Communication Rate |
115200bit/s |
||
|
Supply Voltage |
24VDC +/-10% |
||
|
Average Current |
<0.05A@24VDC |
||
|
Pilot Lamp |
1 LED indicator light |
||
|
Physical Parameters |
Size |
Φ18*92.2mm +Φ18*40mm |
|
|
Total Weight |
0.05kg |
||
|
Fixing Type |
Nut fixation |
||
|
Housing Material |
PC+ABS |
||
|
Shell Color |
Black |
||
|
Application Environment |
Working Temperature |
-25℃~+70℃ |
|
|
Storage Temperature |
-40℃~+85℃ |
||
|
Working Humidity |
5%~95%RH(No condensation) |
||
|
Protection Grade |
IP68 |
||
|
Anti Vibration |
GB/T2423.10-2019 |
||
|
IEC 6068 -2 -6:2007 |
|||
|
Certification |
CE, RoHS2.0 |
||
|
Accessories |
Connectors, cables, etc. |
||
Dimension Diagram (Unit:mm)
